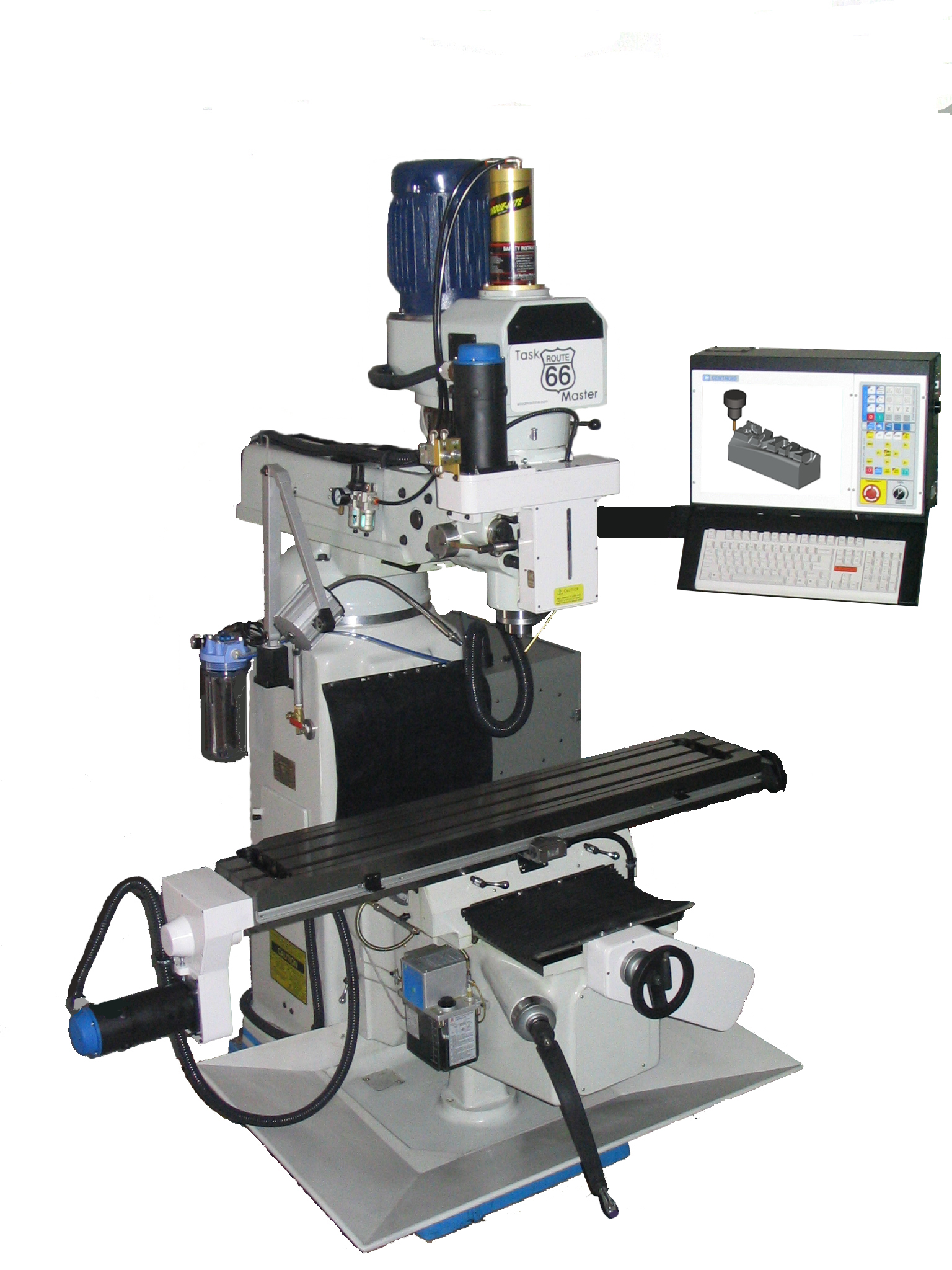

3 Axis CNC Knee Mill Task Master 4 Toolroom CNC




Search this site powered by FreeFind





Why do you want to purchase from Elrod Machine?

What our customers are telling us

Outstanding value and price with support

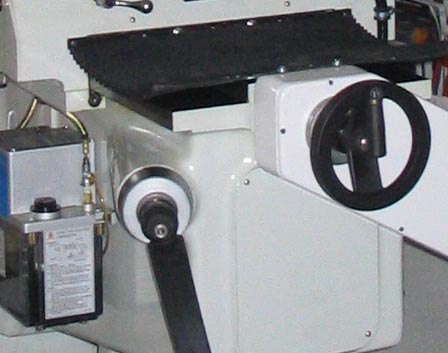

  • Box Way Saddle and Knee Provides Excellent Support
  • Yaskawa  V1000 Inverter Drive and Baldor Super E Motor
  • Class 7 Angular Contact Bearings
  • Certified Meehanite Casting
  • Ram Locking System U.S. Patent #4990039 Utilizing 6 T-Bolts
  • #40 Taper For CAT, BT or NMTB
  • Hand Scraped Turret-Column Ways
  • Square Y & Z Ways
  • Dust Cover For Knee And Crossfeed Ways
  • Precision Hardened And Ground Table With Turcite
  • Double Wall Column
  • Built-In Coolant Tank In Base

STANDARD EQUIPMENT:

  • TURCITE On The X & Y Axis



STANDARD ACCESSORIES:



Tools & box

29in/lbs DC motor



Centroid 3axes M400S control

Leveling bolts & plate

Torque-Rite USA MadeDraw bar



4 1/8" Quill Heat Treat Hardened & Chromed

Way covers

Automatic lube system

Double Wall Construction

Operation manual NST 40 Spindle Hardened & Ground Table & Ways



Std. Specifications:

SPECIFICATIONS

AM4AC
TABLE Table Size 10" x 54"
Longitudinal Travel (X Axis) 31.500" CNC
Cross Travel (Y Axis) 16" CNC
Vertical Knee Travel (Z Axis) 16"
Over Ram Travel 18"
T-Slot Number , Size 3 , 5/8"
SPINDLE Spindle Motor 5HP
Spindle Speed Inf. Vari.
Spindle RPM 50~5,000 RPM
QUILL  Quill Diameter 4 1/8" #40 Taper
Quill Travel 4.8 CNC & Manual
POWER Main Motor 5 HP Baldor Super E
Voltage 220V 1PH / 3PH
WEIGHT Net Weight 3,520 LBS
Dimension W.x L. 68 1/2" x 56 1/2"
Controller Centroid M400S 110VAC
PLC Full PLC with M Functions
3 Modes Of Operation 3 Axis CNC, 2 Axis with Z Feedback, Manual Machine with 3 Axis DRO
4th Axis Upgrade Unit Can be Upgraded to 4th Axis
Programmable

Spindle Speeds

M3, M4 and M5 with S Function Can Run on 208, 230 VAC or 220 Single Phase Power

(NO Phase Converter Needed)

Hand Wheels for Manual Use Aluminum Body With Folding Handles For Safety
USA Made Draw Bar Mill Supplied With Torque-Rite Power Draw Bar
Power Needed Std Control Runs on 110VAC Optional High Power Option to 3 Phase
CNC Travels X 31.5" Y 16" Z 4.8"  Manual Knee 19"

The manufacturer reserves the right to modify the design, specifications, & mechanisms to improve the performances of the machines without notice. All specifications above are for your reference only.



Additional Accessories information:



Power requirement



4 KVA 3 phase 208V/230Vmax / 110VAC

Air requirement







Power draw bar 90 - 100 psi

Type of oil for Way oil /  pneumatic oil

Mobil Vactra #2 / Air tool oil / Mobile Velocite 10

Coolant capacity









7 Gallons

MACHINE OPTIONAL ACCESSORIES:

1. Automatic mist coolant system

$    575.00

2. High voltage option (TRANSFORMER): 220 VOLTS TO 440 OR 480 VOLTS

$    455.00

3. Smart- Stop (Adjustable Quill Stop Similar To Manual Knee Mill Quill Stop)

$    375.00

4. Flood Coolant / Chip Tray $    650.00
5. Halogen work light $    200.00

 CENTROID  CONTROL OPTIONAL ACCESSORIES:

1.MPG - HP 100 STEP

$    660.00

2.CENTROID 150 MM (5.9") ROTARY TABLE; INCLUDES PRE-WIRE, SOFTWARE

$ 6,615.00

3.DP-4 DIGITIZING PACKAGE INCLUDES PROBE & SOFTWARE

$ 4,940.00

4.TT-1 TOOL TOUCH-OFF KIT WITH TOUCH-OFF SOFTWARE (SETTING TOOL LENGTHS)

$    610.00

5.CENTROID ENGRAVING SOFTWARE

$    500.00

6. RIGID TAPPING

$    550.00

7.UNLIMITED PART PROGRAM SIZE (1 Meg STANDARD ON ALL M-SERIES CONTROLS)

$    550.00

8.EXT. MULTIPLE WORK COORDINATE SYSTEM (G54-G59 FREE)

$    305.00

9.CENTROID DXF IMPORT IN INTERCON

$    305.00

10.USER DEFINABLE MACROS AND SUB PROGRAMS (G65 & M98)

Free

11.COORDINATE SYSTEM ROTATE

$     220.00

12. SCALING AND MIRRORING (G50 AND G51)

$     220.00

 13 DP-4 PROBE WITH PROBING SOFTWARE

$  1,590.00







14. Tool Room Package Includes DP4 Probe with Probing Software, TT-1 Tool Setter and

     ALL  Mult. Work Coordinates

$   2,200.00

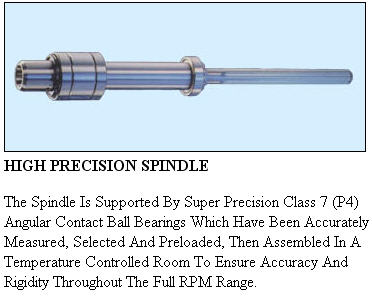

HIGH PRECISION SPINDLE

The Spindle Is Supported By Super Precision Class 7 (P4) Angular Contact Ball Bearings Which Have Been Accurately Measured, Selected And Preloaded, Then Assembled In A Temperature Controlled Room To Ensure Accuracy And Rigidity Throughout The Full RPM Range.

ACCURATELY GROUND QUILL & HOUSING

Hardened And Ground Spindle Back-Gears. The Hard Chromed Quill Is Ground To Mirror Finish And Fitted To The Quill Housing To Ensure Smooth Movement, Excellent Rigidity And Offers Extreme High Spindle Accuracy.

 MEEHANITE CAST IRON

All Essential Castings Are Made Of High Grade Meehanite Cast Iron Which Has Been Stress Relieved To Provide A Rigid Machine Structure.

Elrod CNC Mills are being used by well known companies such as :
Honeywell
Los Alamos National Laboratory
Lowell Observatory
US Naval Observatory
ATK  America (The other USA made motorcycle)
WL Gore and Associates

Machine Solutions
