Aone 3 Axis CNC Knee Mill

Outstanding value and price with support after the sale!

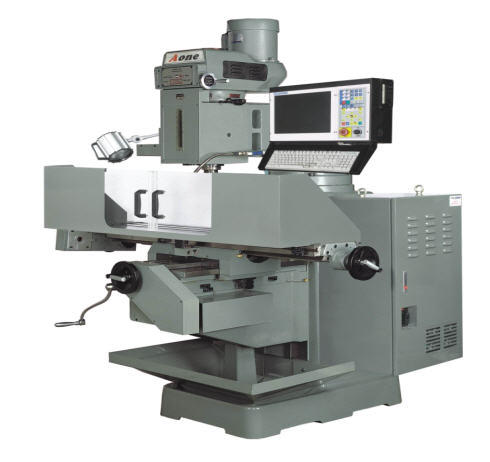

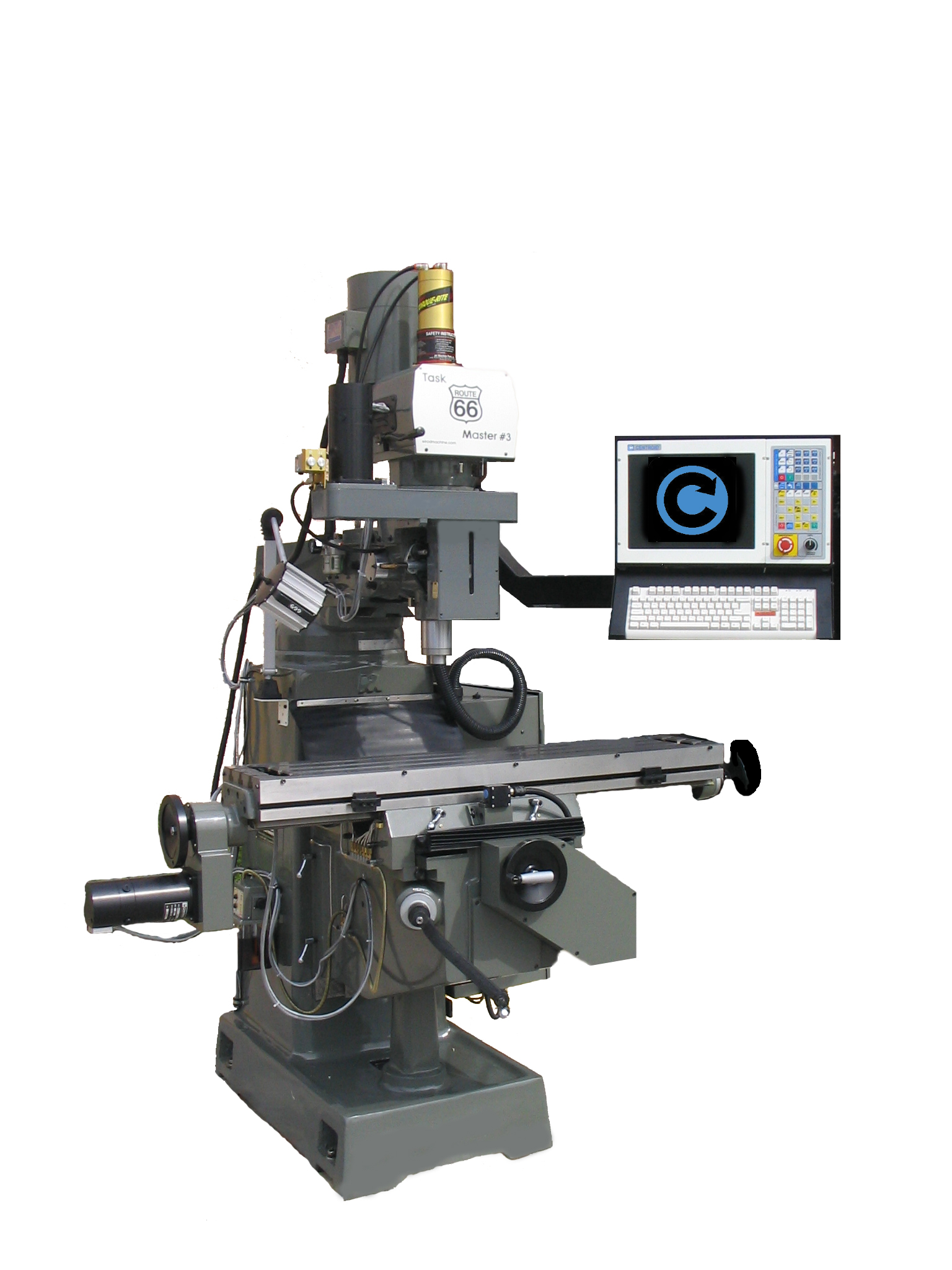

     Tramming Style Head        Or             Rigid Style Head

       (more versatile)

MACHINE FEATURES

l        Machine finished in Taiwan with China casting (But meet or exceeds Xtron's Specs.)

l        3HP Spindle Motor, R8 Spindle Taper

l        5,000 rpm spindle speed with HI-LO gear  with S Functions and M3-M5

l        Hardened & Ground with turcite-B coating guide way

l        C5 Precision ground ball screws on X, Y and Z axis for high accuracy and long lasting

l        FC30 Meehanite  Casting main frame with annealed & stress relieved for long term reliability

l        Anti rust chrome quill

l        Box ways design on Y axis to provide maximum rigidity & stability

l        Standard way cover on three axes

l        Tool box & Tools

l        Precision APEC class7 spindle bearing to ensure spindle runout within 0.0002

l        One shot lubrication system

l        Built-in Quartz work light

l        Hard limits installed on X,Y and Z Axis

l        3 axes NC (4th axis optional)







































Specification:

Table:                                                                                      10 x 50

Longitudinal travel (X axis ):                                                    31

Cross travel:                                                                            14 1/2

Z axis travel cnc quill:                                                               4.700 (manual), 4.700(cnc)

Knee travel (manual):                                                            16

Quill diameter:                                                                      3.375 (86 mm)

Spindle nose to table top (D):                                                 0.75-16.75 (20 - 426mm)

Load capacity:                                                                         600 lb

Spindle taper:                                                                          R8

Spindle Speed (r. p.m.):                                                           70 to 5000 rpm with Hi/Lo gear

Transmission of spindle & motor:                                             Timing Belt

Spindle center to column front surface:                                   6.875 to 27.875 (175 - 707mm)

Torque Rite U.S.A. made Power Draw Bar

All Task Master CNC mills can be operated with standard single phase power

Head:

Swivel (left/right) :                                                                   90 degree

Tile (front/back):                                                                      45 degree

Motor:

Spindle motor/max torque:                                                      3HP (Std.) 5HP (Opt.)

KVA rating:                                                                               4KVA, 15amps

Coolant pump (optional)                                                          1/8 Hp

Lubrication pump:                                                                    one shot

Power requirement:

4 KVA, 3 Phase 208-230 voltage Spindle 110 VAC Controller

Length X Width X Height (LXWXH):                                          102 x 77 x 84

Net Weight:                                                                             3,100 lbs. (1420 Kgs)



MODEL

SPINDLE

Travel X/Y/Z

Tool

Servo motor

SPINDLE

Control

FOB AZ







Change



MOTOR





3VK

R8

31/14/5

Manual

29in/lbs Dc

2.2Kw(3HP )

M400S

Call For Pricing!



STANDARD ACCESSORIES:



Tools & box

29in/lbs DC motor



Centroid 3axes M400S control

Leveling bolts & plate

Draw bar



Coolant system

Way cover

Automatic lube system

Halogen work light

Operation manual

R8 spindle



Table guard



Additional Accessories information:



Power requirement



4 KVA 3 phase 208V/230Vmax / 110VAC

Air requirement







Power draw bar 90 - 100 psi

Type of oil for Way oil /  pneumatic oil

Mobil Vactra #2 / Air tool oil / Mobile Velocite 10

Coolant capacity









7 Gallons



MACHINE OPTIONAL ACCESSORIES:

1. Automatic mist coolant system

$    575.00

2. High voltage option (TRANSFORMER): 220 VOLTS TO 440 OR 480 VOLTS

$    600.00

3. MOTOR UPGRADE FROM  3 HP to 5 HP

$    600.00

4. Smart- Stop (Adjustable Quill Stop Similar To Manual Knee Mill Quill Stop)

$    300.00

 CONTROL OPTIONAL ACCESSORIES:

1.MPG - HP 100 STEP

$    660.00

2.CENTROID 150 MM (5.9") ROTARY TABLE; INCLUDES PRE-WIRE, SOFTWARE

$ 5,717.00

3.DP-4 DIGITIZING PACKAGE INCLUDES PROBE & SOFTWARE

$ 6,025.00

4.TT-1 TOOL TOUCH-OFF KIT WITH TOUCH-OFF SOFTWARE (SETTING TOOL LENGTHS)

$    695.00

5.CENTROID ENGRAVING SOFTWARE

$    665.00

6.COMPRESSION TAPPING (G84)

$    350.00

7.UNLIMITED PART PROGRAM SIZE (1 Meg STANDARD ON ALL M-SERIES CONTROLS)

$ 1,495.00

8.MULTIPLE WORK COORDINATE SYSTEM (G54-G59)

$    700.00

9.CENTROID DXF IMPORT IN INTERCON

$    495.00

10.USER DEFINABLE MACROS AND SUB PROGRAMS (G56 & M89)

$   1495.00

11.COORDINATE SYSTEM ROTATE

$     495.00

12. SCALING AND MIRRORING (G50 AND G51)

$     495.00

13. PACKAGE B (OPTION NUMBERS  10, 12 AND 8) WHEN PURCHASED WITH MACHINE OFFER

 EXPIRES WITH  DEMO EXPIRATION)

$   1850.00

14. PACKAGE C (OPTION NUMBERS  7, 12 AND 11 WHEN PURCHASED WITH MACHINE OFFER

EXPIRES WITH  DEMO EXPIRATION)



$   1699.00

15. Tool Room Package Includes DP4 Probe with Probing Software, TT-1 Tool Setter and

       Mult. Work Coordinates

$   2595.00
