Elrod XY Bracket Kits

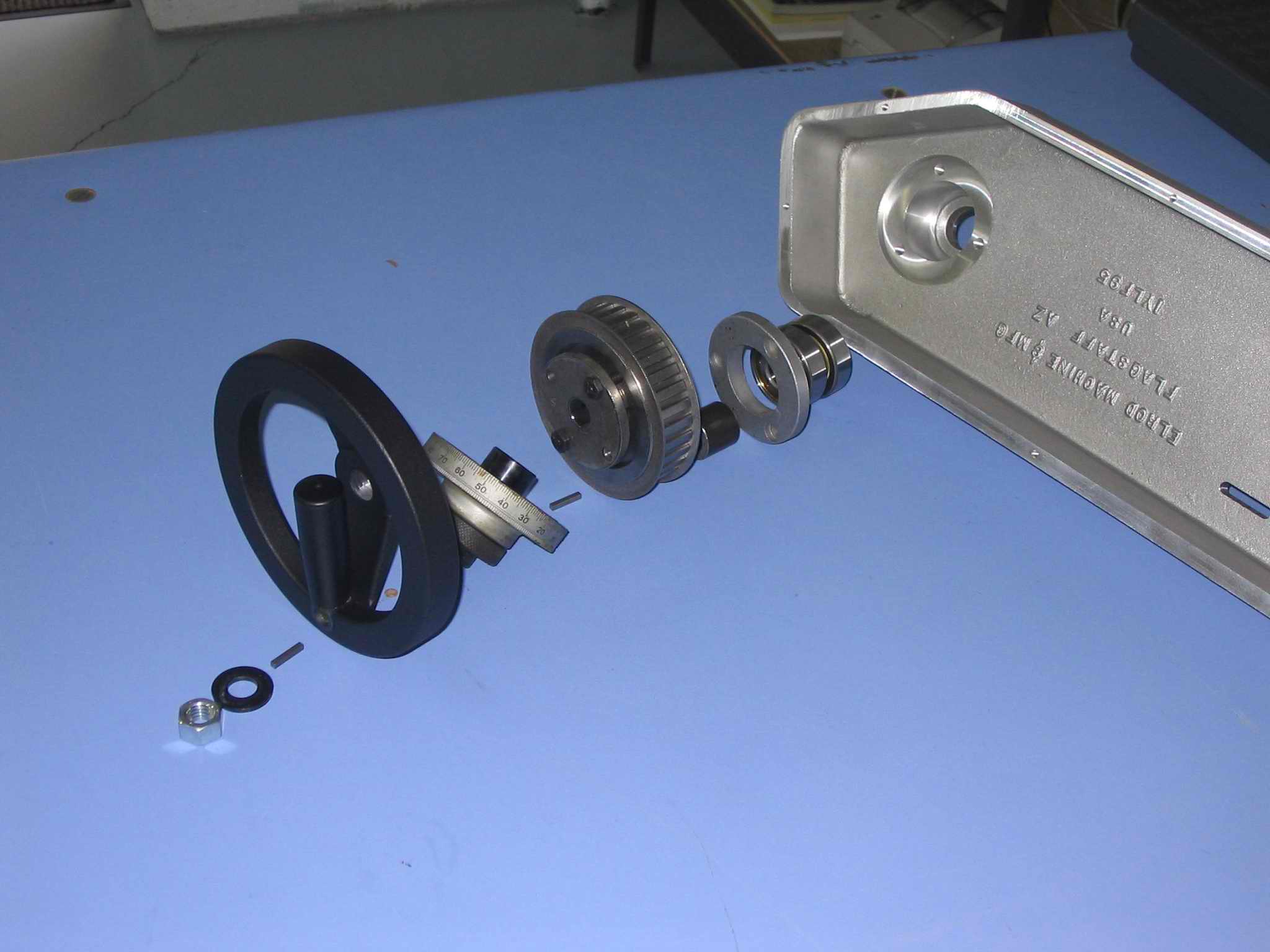

Features Of Our X&Y Bracket Kits

  • Two X models to choose from and 2 Y models to choose from.
  1. Standard down and out X with external Y. Model DOXLFT95 2:1
  2. Space saver X and external Y. Model SSXLFT95 2:1
  • Internal Y for some import mills with a hole in the front of the knee.
  • Both Y brackets retain the use of the machines graduated dial.
  • Sturdy cast aluminum 713 Tenz Alloy Heat Treated.
  • 2 German hand wheels with retractable handle provided for manual use.
  • Angular contact bearings provided.
  • Aluminum pulleys with belts.
  • All belts are protected from harsh environment.
  • All mounting hardware included.
  • Supplied in 2:1 Ratio
  • Our Brackets have heavy walls for maximum rigidity
  • Compared to the competition our brackets are at least 2 lbs heavier.

Model DOXLFT95 2:1 Price: CALL FOR PRICING

Model SSXLFT95 2:1 Price: CALL FOR PRICING

Powder Coat $155.00





Double click on each picture to open a bigger view.
